- Digital counter equipped with optical sensor (10 million round) and separate battery for keep counting in any condition
- Fatigue test using reverse bending stress method
- Determination of endurance limit for metals
- Automatic stop after test failure
- One million round in 3 hours
- Exact loading mechanism
|
|

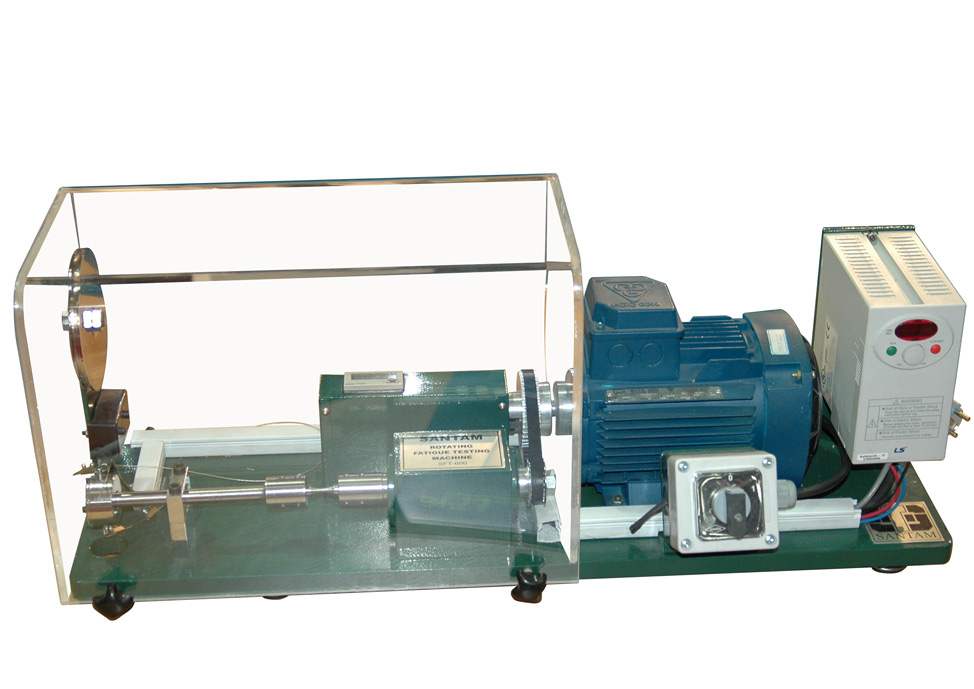

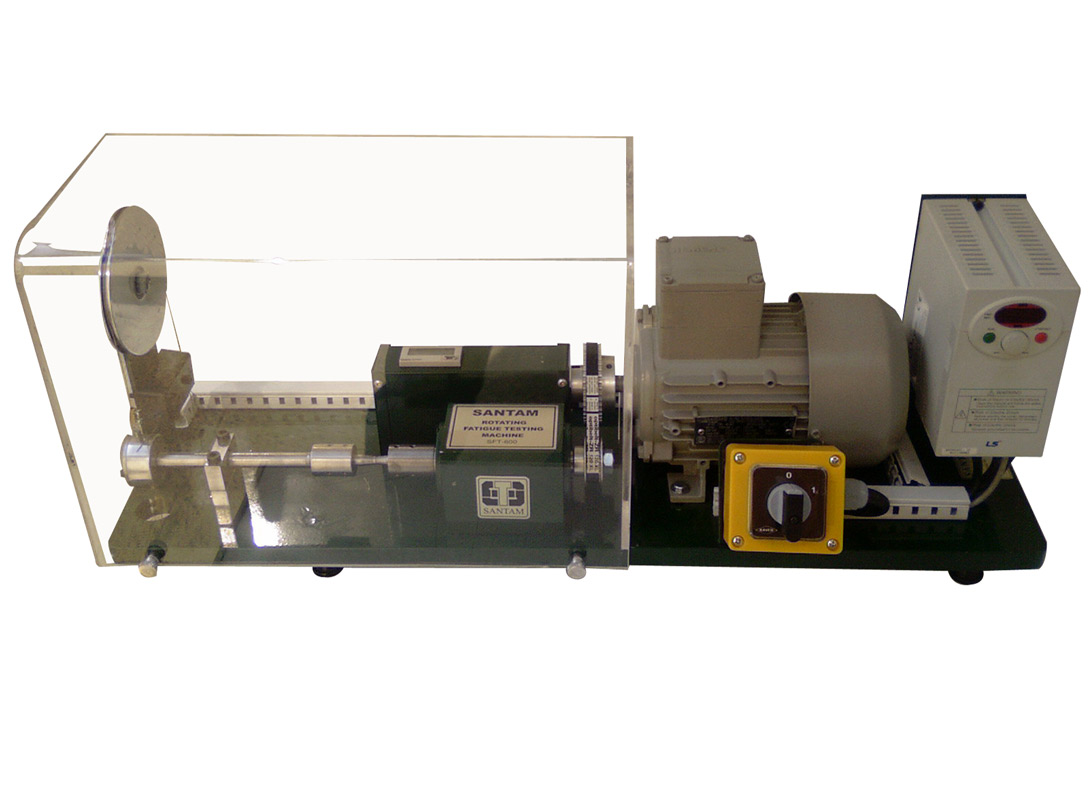

SFT-600 can be used in various industries such as power, energy, road and structure, aerospace, medical etc. to evaluate the working life of different parts and equipments such as turbine blades and other energy distribution equipments, under pressure tanks, pipes, compressors, small and big metallic (Aluminum, Steel, …) and non-metallic parts, Metallic and polymeric matrix composite parts, welded parts, fasteners, simple and reinforced plastics, biomedical materials.
|
|
Different types of materials -especially metals- which are under repeated and frequent stresses, fracture suddenly far below default fracture strain. Most of engineering parts must endure many force or stress cycles during their working lifetime. Therefore fractures which occur under dynamic loading condition are called fatigue failures. Depending on some of these parameters, this change in loading may happen under a range of amplitude of stress or strain. Therefore in some special cases, fatigue may happen under controlled stress or strain. In materials science, fatigue is a local progressive failure under dynamic loading. SFT rotating fatigue test machines can perform fatigue tests on different samples according to various instructions and standards. SFT-600 is able to have the speed of u to 6000 cycles per minute and maximum bending stress is 600 Mpa.
|
