Features

-  Capacity: 200 kN

-  According to ASTM-A615 and ISIR 3132 standards

-  Suitable for reinforcement (8 to 32 mm in diameter) and steel strips (5 to 30 mm in width)

-  Exchangeable supports with various radiuses (10 to 200 mm) (standard stages)

-  Jog key for precise sample placement (clockwise and counter clockwise)

-  Prevention of support and arm crash using microswitch

-  Programmable for samples with various flexure angle

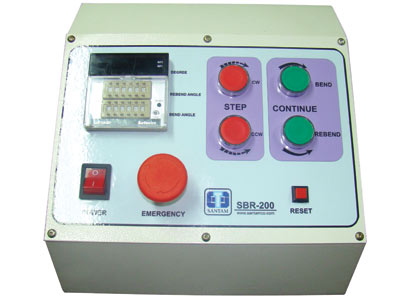

-  Angle digital readout (class one resolution)

-  Electrical current isolation (torque)

-  Robust and tight clamping

-  Flexure primitive angle set

-  Safety guard

Application

Flexure test of reinforcements and steel strips

Description

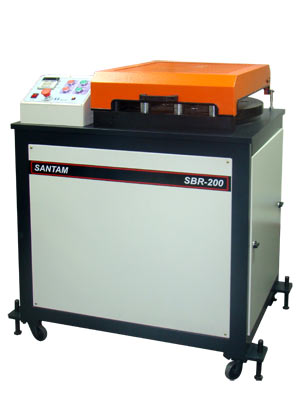

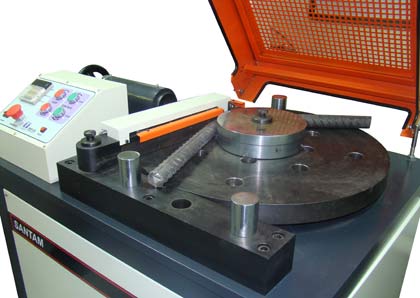

Flexure test is used for determination of quality of metals or welds against plastic deformation. Sample is rotated on a sheet and is bent around an plunge with standard radius (according to sample diameter and related standard) and then rotation is stopped after contact with micro switch and re bend is started up to specific angle up to automatic stop. The result is visually investigated. SBR-200 has 28 adaptors with various diameters and flexure up to 180 degree.
