Features

-   Capacity: 600KN (60 Tonf)

-   Interchangeable Supports Diameters (50 & 100 mm)

-   Manual Adjustable Supports (0~400mm)

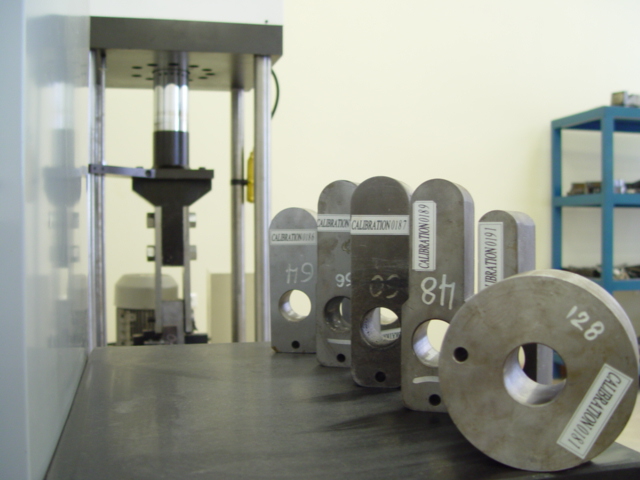

-   Interchangeable Plunger Radius

-   Two Limit Switches

Applications

180 & 90 Degrees Bending test for steel bars & sheets with different diameter (up to 40mm) & Thickness (up to 45mm)

Descriptions

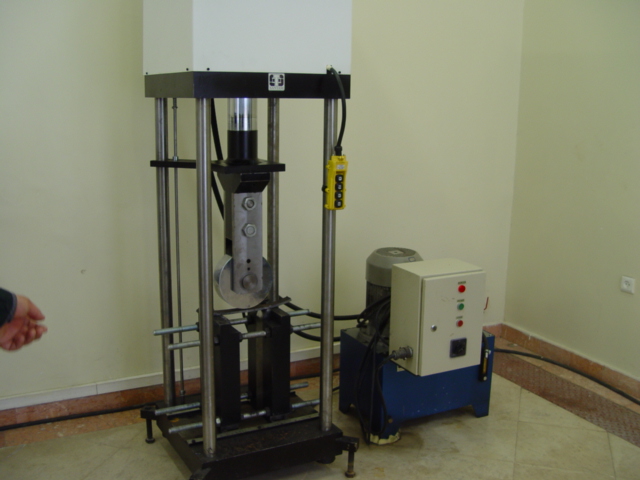

Guided Bend test is a simple test which is used to determine quality of weld metal (or metals) against high plastic deformation. A specimen is placed on the supports and the plunger with standard radius (depends on kinds of material and its thickness) bends the specimen up to 180 degrees (or 90 Degrees). The result is investigated visually.
